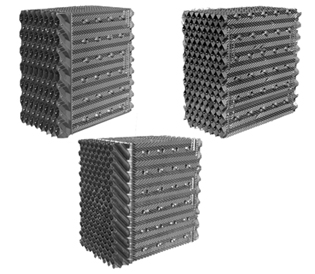

OPTI-PAC 7500 XF/ 7500IL / 7500ID
Available with an integrated louver and with an integrated drift eliminator, Opti-Pac 7500 film fill media are designed to replace OEM hanging fill sheets in crossflow cooling tower applications. The media are fabricated from rigid, thermoformed PVC sheets that are solvent-welded for maximum strength. They are resistant to UV, rot, fungus, organic/inorganic solvents, acids, alkalis, and chemicals normally found in cooling tower waters. The fill modules meet requirements of the Cooling Tower Institute’s standard for rigid PVC, STD-136.
PVC SHEET PROPERTIES:
| Physical Property | ASTM Test | Units | Value |
|---|---|---|---|
| Density | D772 | g/cm3 | 1.45 |
| Tensile Strength (yield) | D882 | lb/in2 | 6,000 min |
| Flexural Strength | D790 | lb/in2 | >11,000 |
| Flexural Modulus | D790 | lb/in2 | 425,000 min |
| Elastic Modulus | D638 | lb/in2 | 360,000 min |
| IZOD Impact | D256 | ft-lb./in. | 1.0 min |
| Impact Resistance | D4226 | in. lbs/mil | 0.8 min |
| Heat Deflection | D648 | Deg F. | 255 min |
| Flammability | D635 | Self extinguishing Less than 5 seconds | |
| Flame Spread Rate | E 84 | Less than 20 |
Opti-Pac 7500 XF/ 7500IL / 7500ID FEATURES:
- High Efficiency Design For Replacing Hanging Fill Sheets
- Bottom Supported For Strength and Ease of Installation
- Integrated Inlet Louver (IL) or Drift Eliminator (IDE)
- Solvent Welded for Maximum Strength and Pack Integrity
- Superior Water Distribution
- Material Complies with Cooling Technology Institute Standard 136
- Available in PVC or HPVC Material
